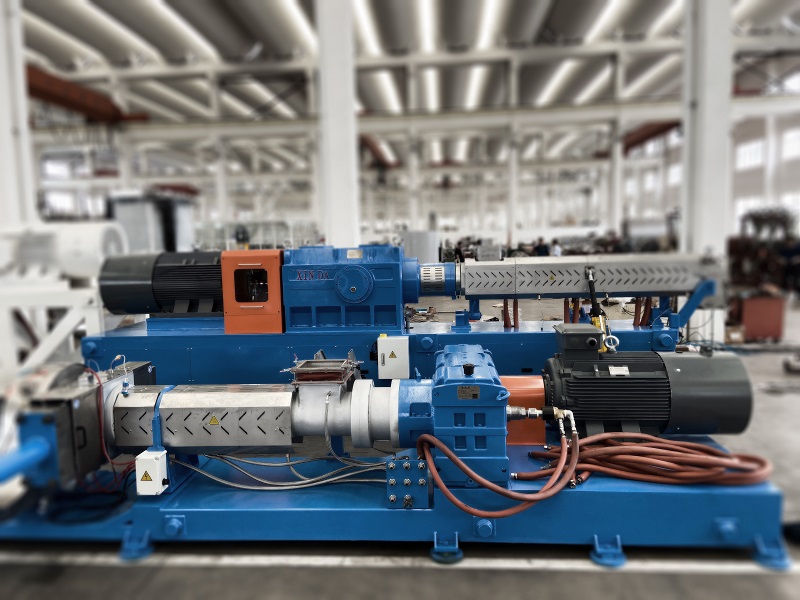

WKS-120 PVC Compounds Extruder Machine

  • WKS-120 PVC Compounds Extruder Machine
  • WKS-120 PVC Compounds Extruder Machine
  • WKS-120 PVC Compounds Extruder Machine
  • WKS-120 PVC Compounds Extruder Machine

WKS-120 PVC Compounds Extruder Machine

    Payment Type: L/C,T/T,Money Gram,Western Union
    Terms of Trade: FOB,EXW
    Min. Order: 1 Piece/Pieces
    Delivery Time: 60 Days
    Packaging: Wood Box and Pallet
    Productivity: 5-1800KG/H
    Brand: XINDA
    Transportation: Ocean
    Place of Origin: Jiangsu,China
    Supply Ability: 1000
    Certificate: ISO9001,CE,SGS
    HS Code: 84772010
    Port: SHANGHAI,QINGDAO,NINGBO

Basic Info

Model No.: WKS

Product Description


Flights Screw Co-kneader PVC Compounding Extruder System

extruder machine

The XINDA WKS 4-Flight Co-kneader is only designed for PVC compounding and pelletizing, with target capacity 1500-2000kg/h for PVC cable compounds for a single compounding line.


Application For WKS Co-kneader

--PVC compounds
--Soft PVC cable compounds for sheathing, insulation, bedding
--Soft PVC compounds

--Rigid PVC compounds



Model WKS-100 WKS-120
Co-kneader Screw Dia. 100 120
L/D Ratio 15 15
Max. Screw Speed 500 RPM 500 RPM
Main Motor Power 160-200 KW 220-280 KW
Second-stage Screw Dia. 200mm 220mm
Second-stage Screw L/D 7 7
Max. Screw Speed 60 RPM 60 RPM
Second-stage Motor Power 55-75 KW 90 KW
Reference output (kg/h) 1000-1500 1500-2000


The XINDA WKS 4-Flight Co-kneader is only designed for PVC compounding and pelletizing, with target capacity 1500-2000kg/h for PVC cable compounds for a single compounding line.

--Typical highlights and benefits of XINDA WKS 4-flight Co-kneader:
--Optimized intake section: No forcing feeding, large inlet opening, effective backward degassing, -improve material transport
--4 row of flights increase shear surface, produce more shear energy
--Improve conveying stability by overlapping flights
--No open gap between flights and pins
